Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 ,CE , RoHS , FCC |
Model Number: | DDW-VPH1515 |
Minimum Order Quantity: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Double layer carton pack |
Delivery Time: | 3working days upon payment |
Payment Terms: | T/T,L/C,Western Union,Alibaba Trade Assurance |
Supply Ability: | 1000pcs/month |
Solid Display: | Support Each Screen Input With Separate Signal | IPad/iPhone Remote Control: | Support Customized APP Remote Control |
---|---|---|---|
Scene Management: | Support Multiple Scenes Management/recall Function | Control Method: | RS232,IP |
Rich Resolution: | Support 1080P,1080I,720P,480P &multiple Resolution Inputs | Frame Material: | Aluminum Brushed |
Standard Packing: | Double Layer Carton Box Pack | Weight: | 5-100kg |
High Light: | lcd video wall controller,multi screen controller |

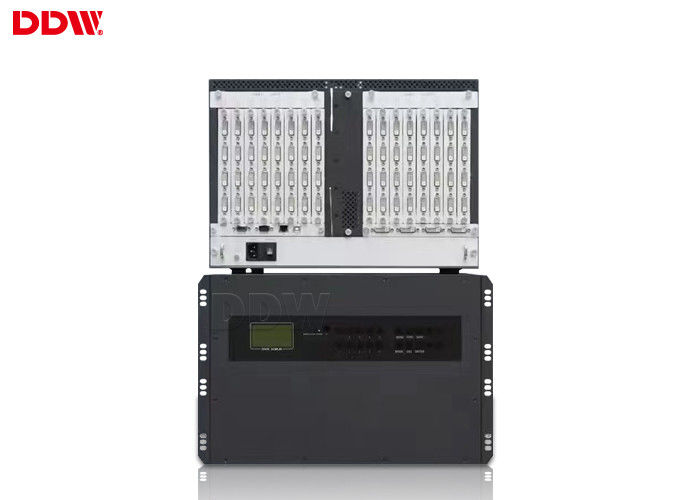

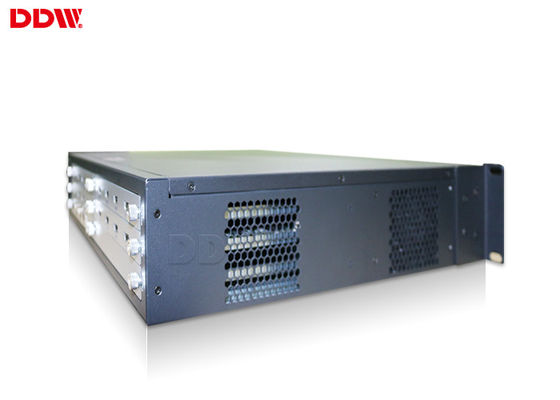

Video wall controller 3x3 , advertising display screen standalone video wall controller DDW-VPH1515
video wall controller support multiple signals inputs and multiple signals outputs. It can be widely used for monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
Key Features:
1. Advanced pure hardware structure
2. Special virtual display technology
3. CAN controlling technology
4. All digitalized processing
5. Full Channel HD 1080P signal processing
6. Powerful image processing capability
7. Flexible operation control system
8. Customizable character overlay function
9. Easy control mode
10. The input signals are selectable
Specifications:
Functions | |
Vertical/Horizontal Display | Support |
Combine Display | Support combine any horizental &vertical numbers of screens and show display |
Support combine all screens together to show 1image | |
Solid Display | Support each screen input with separate signal |
PIP/Zoom/Roaming | Support open one window for each screen, each window can be zoomed &roaming internal freely |
Multiple Interfaces | Support DVI,,VGA,AV &multiple signal inputs |
Rich Resolution | Support 1080P,1080I,720P,480P &multiple resolution inputs |
Dimension(WxHxD) | 318.4x332x56mm |
Appearance | |
Standard Packing | Full wood box pack |
Weight | 5kg | 66.1lbs (net) |
6kg | 88.2lbs (gross) | |
Quality Standard | ISO9001,CCC,RoHS,FCC |
Technical Specifications | ||
Model series | With CBD | No CBD |
Function description | 4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image | 16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
Input signal(optional) | /DVI/VGA/AV/YPbPr | |
Input resolution | 1024x768~1080p,commonly used resolutions | |
Output signal format | DVI/VGA/AV/YPbPr/(DVI- converter) | |
Output resolution | Up to 1920x1200/60HZ | |
System control software | Special control software | |
Power Supply | Redundant power supply 110-220VAC, 50/60Hz | |
Consumption | 12W/channel | |
Working temperature | -20°C——60°C | |
Working Humidity | 5-95% | |
Case specification | 4U/6U/10U/15U standard rackmount chassis | |
Serial Control Interface | RS-232,9-pin female, Type-D | |
Baud Rate | 115200 | |
Pin configuration | 2=TX,3=RX,5=GND | |
Ethernet control interface | RJ-45 female, TCP/IP | |
Ethernet control speed | Auto 10M or 100M,Full-duplex or half-duplex | |
Working time | 365 x 7 x 24hrs | |
Technical specification of input/output connectors | ||
VGA/RGB input | Input: 15pin HD D-Sub, female | |
Sync mode: HV independent sync | ||
Color Depth: 32bit/pixel | ||
Resolution: 640 x 480/60HZ—1920 x1200/60HZ | ||
Input impedance :75Ω | ||
Video input | Input connector: BNC | |
Detecting: full-format auto detecting | ||
Input impedance :75Ω | ||
VGA or DVI output | Resolution:1024 x 768/60HZ-1920 x 1200/60HZ | |
Color depth: 32bit/pixel | ||
Output impedance:75Ω | ||
Physical properties of input/output connectors | ||
Signals | Connectors | Type |
Composite VIDEO input | BNC | female |
VGA input | 15 pin HD D-Sub | female |
VGA output | 15 pin HD D-Sub | female |
DVI output | 24+5 or 24+1 standard | female |
AUX RS-232 | 9-pin D-Sub | female |
Main RS-232 | 9-pin D-Sub | female |
