Place of Origin: | Guangdong , China (Mainland) |
---|---|
Brand Name: | DDW |
Certification: | ISO9001 , CE , RoHS , FCC , IP65 |
Model Number: | DDW-AD8401S |
Minimum Order Quantity: | 1 Set |
Price: | Negotiable |
Packaging Details: | Carton and Full wood box packing |
Delivery Time: | 20working days upon payment |
Payment Terms: | T/T , Western Union , L/C , Alibaba Trade Assurance |
Supply Ability: | 300 set per month |
Maximum Resolution: | 1920x1080 | Display Color: | 1.073G(10bits/color) |
---|---|---|---|
Life(hrs): | >60000(hrs) | Average Brightness: | 1500-2500cd/mxm |
Maximum Power Consumption: | 3600W | Standby Power Consumption: | <5W |
Working Temperature: | 0- 40 ℃ | Storage Temperature: | -10℃ — 50℃ |
Installation: | Flood-standing , Wall Mounted Or Customized | Contrast: | 2000/1 |
High Light: | lcd ad display,floor standing display |

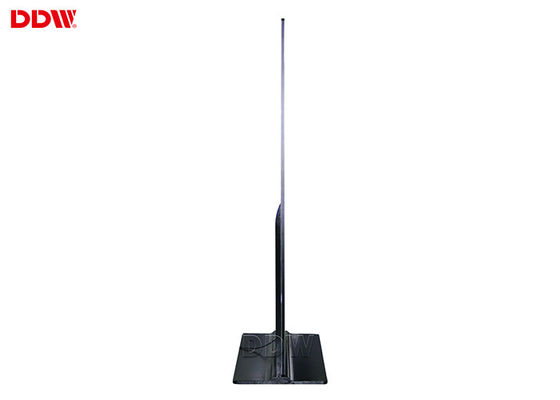

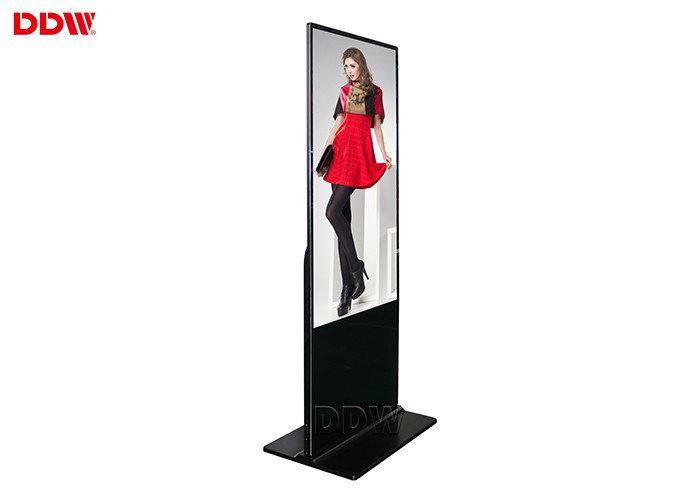

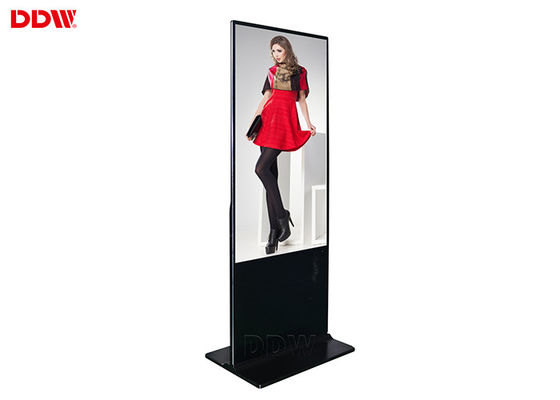

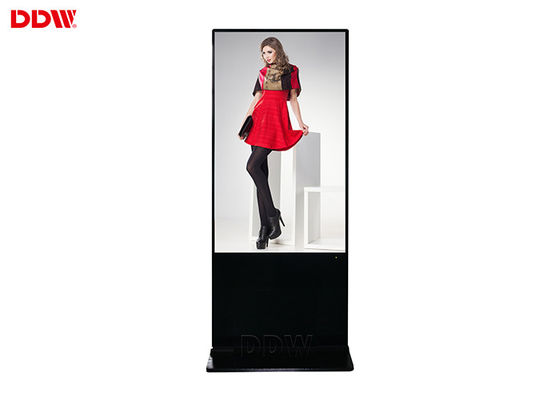

1920x1080 84 Inch Lcd Advertising Player Floor Sign Stands Sunlight Readable Panel DDW-AD8401SNO
2, Patented LED backlight modular components + constant current source drive components
3, Patented cooling structure combination of high-quality fan assembly
4, Quad cores CPU 8Gb memory , Latest Android OS network version support LAN control , WIFI control , USB , CF , SD slots , support VGA input , 3G(optional)
5, Automatic ambient light adjustment control (extended life and energy efficiency)
6, Built-in power adapter combination AC220V/DC
7, IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8, Highly fortified AR glass , protect the LCD screen from direct injury , played the role of anti-riot
9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10, A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring , real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature -20℃ - 50℃
Strong point:
1.Case Metal power coating black finished,And have holes for the base to fix on the floor
2. Commercial designed for 24/7 operation
3. Big cooling fun auto controlled by timer or temperature,Semi conductor ,fully tempered ultra-clear glass.Unique cooling system can let display working under direct sunlight
4. waterproof standard IP65 .High brightness 2000nits sun readable screen
5. Brightness sensor and inbuilt heater to working in cold environment
Functions:
1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2, Audio format Wave/MP3/WMA/AAC
3, Image format JPEG/BMP/TIFF/PNG/GIF
4, Image resolution 480P/720P
5, Play mode:Power on , single card auto loop play classified files auto loop play multi cards
6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7, Timing open & close:Per day 5 times , 7 days a week,free time
8, Timing play 7 days a week,free set the play program everyday
Parameters
LCD parameters | Model No. | DDW-AD8401S |
display | 84" LED | |
Contrast Ratio | 16/9 | |
machine size | 2530x1180x75mm | |
Display area | 1858.48x1044.52mm | |
Maximum resolution | 1920x1080 | |
Pixel Pitch(mm) | 0.4845x0.4845mm | |
Display color | 1.073G(10bits/color) | |
Life(hrs) | >60,000(hrs) | |
average brightness | 1500-2500cd/mxm | |
contrast | 3500/1 | |
Viewing angle | H178°/V178° | |
Power supply | AC100~240V 50 /60 HZ | |
Maximum power consumption | 3600W | |
Standby power consumption | <5W | |
Working temperature | 0- 40 ℃ | |
Storage temperature | -10℃ — 50℃ | |
Installation | flood-standing , wall mounted or customized | |
IP65 waterproof case | Using 1.5mm galvanized steel | |
Surface spray powder (anti-corrosion, anti-rust) | ||
Outdoor anticorrosive over 7 years | ||
AR anti-reflective glass 3 + 3mm plastic folder | ||
Display screen glass | Light transmittance 97% | |
Reflectivity is less than 3% | ||
Explosion-proof, waterproof, fireproof | ||
UV protection 99% | ||
Display screen | Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 | |
High brightness 1500-2000 cd/㎡ | ||
Full hd 1920x1080 | ||
Industrial power supply | ||
automatically adjust the brightness | ||
Electronic control system | Power supplies , timers , remote control panel , photographic plate , speaker , battery , leakage protection switches , sockets , etc . | |
Cooling system | Intelligent heating and air-cooling system | |
meet the environment of -20℃ — 55 ℃ | ||
LCD display is not blackening | ||
Patented cooling system ensures that the LCD screen without blackening in direct sunlight | ||
Product assembly and aging test | IP65 waterproof test | |
High and low temperature test | ||
Simulated solar radiation test | ||
Aging test | ||
Packaging | Wooden packaging, sea/air/express(transportation standards) |
Applications
Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy . |
Financial Organizations | Banks , negotiable securities , funds , insurance companies , pawnshops , Non-profit Organizations , Telecommunications , post offices , hospital , schools |
Public Places | subway , airports , stations , gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers . Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
Entertainments | Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
