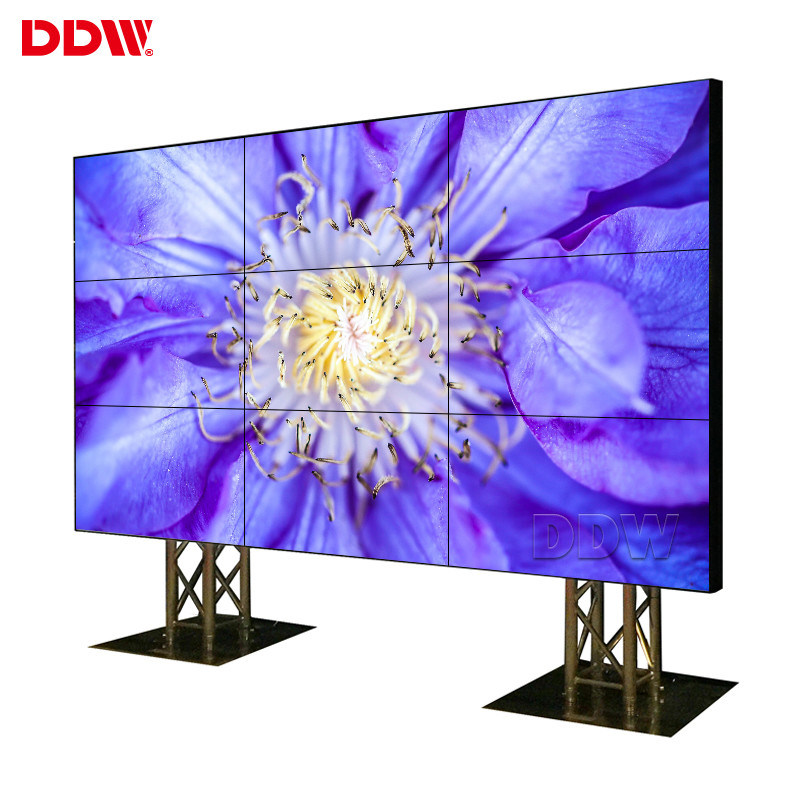

Heat Dissipation 819 BTU/H Max LCD Video Wall Display 55 Inch 500 Nits Brightness LW550HN11
LCD Video Wall Display basic informations:
- With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
55'' LCD Video Wall Display main parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness, MEGA DCR contrast
3. FHD physical resolution 1920x1080
4. Only 3.5 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
6. HD video wall unit--- High brightness,high contrast,high gamut .
7. Flexible structure design ---easy installation ,extensible,arbitrary combination
8. Stable performance,suitable working for a long time
LCD Video Wall Display Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Dynamic image without motion trail
7. Splicing image processing RS-232 RJ45 loop-circuit input/output.
8. Input by remote control with wire, mobile receiver head.
LCD Video Wall Display Specifications:
| Model No: |
DDW-LW550HN11 |
| LCD Technology |
SAMSUNG LCD |
| Active Screen Diagonal |
55" |
| Total Bezel Width |
3.5 mm |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920x1080 |
| Backight System |
LED |
| Luminance(nits) |
500 cd/sqm |
| Contrast |
MEGA DCR |
| Viewing Angle |
H 178°|V 178° |
| Panel Dimension(WxHxD) |
1213.5x684.3x67.7mm
|
| White Point |
10,000 K |
| Display Colors |
8Bit,16.7M |
| Refresh Rate |
60Hz |
| Response Time |
<=6ms |
| Life(hrs) |
>60,000(hrs) |
| MTBF |
> 100,000 h |
| Surface |
Anti-glare |
| Standby Power Consumption |
<3W |
| Maximum Power Consumption |
lower than 250W |
| Power Supply |
AC100~240V 50/60 HZ |
| Cooling |
Low noise fans |
| Heat Dissipation |
819 BTU/h (max) |
| Working Time Capacity |
7x24x365hours |
| Application Area |
Indoor/Semi Outdoor |
| Working Temperature |
0°C~50°C |
| Working Humidity |
0.85 |
| Storage Temperature |
-20-60°C | -4-140°F |
| Storage Humidity |
85% non-condensing |
LCD Video Wall Display Board Specifications
| Support |
PC |
Color |
24bit |
| Signal |
|
Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
|
DVI
HDMI
DP
|
Color |
24bit |
| Line synchronization range |
30-80KHZ |
| Field synchronization range |
50-75HZ |
| Interface |
Input |
VGA x 1 |
15pin D-Sub |
| DVI x 1 |
DVI-I |
| DP x 1 |
Display Port |
| HDMI x 2 |
HDMI-19 pin |
| Output |
PANEL |
LVDS 36Pin/2.0 |
| DP out |
DP loop out |
| Power |
Input power |
DC24V/12V/5V |
| Drive panel |
5V/12V |
| Power mode |
Normal working mode, power saving mode |
| Other |
OSD |
Chinese, English and other languages (other languages can be added as required) |
