Highlight:
digital display signs outdoor
, kiosk digital signage

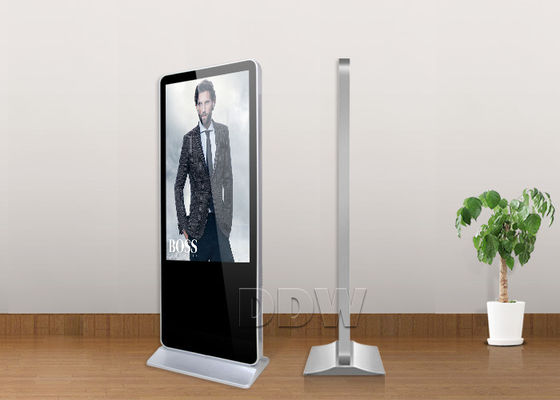

1920x1080 49” high brightness LCD high lumen 1500nits digital signage for outdoors DDW-AD4901SNO
Functions
1, Video format MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2, Audio format Wave/MP3/WMA/AAC
3, Image format JPEG/BMP/TIFF/PNG/GIF
4, Image resolution 480P/720P
5, Play mode: Power on, single card auto loop play classified files auto loop play multi cards
6, Time year/month/day/week/h/m/s , in the top right corner (open and close optional)
7, Timing open & close: Per day 5 times, 7 days a week, free time
8, Timing play 7 days a week, free set the play program everyday
Parameters
| LCD parameters |
Model No. |
DDW-AD4901SN |
| display |
49" LED |
| Contrast Ratio |
16/9 |
| machine size |
1130x684x55 |
| Display area |
1040x585 |
| Maximum resolution |
1920x1080 |
| Pixel Pitch(mm) |
0.1805×0.5415 mm |
| Display color |
1.073G(10bits/color) |
| Life(hrs) |
>60,000(hrs) |
| average brightness |
1500-2500cd/m2 |
| contrast |
4000/1 |
| Viewing angle |
H178°/V178° |
| Power supply |
AC100~240V 50 /60 HZ |
| Maximum power consumption |
3600W |
| Standby power consumption |
<5W |
| Working temperature |
0－ 40 ℃ |
| Storage temperature |
-10℃ — 50℃ |
| Installation |
floor-standing, wall mounted or customized |
| IP65 waterproof case |
Using 1.5mm galvanized steel |
| Surface spray powder (anti-corrosion, anti-rust) |
| Outdoor anticorrosive over 7 years |
| AR anti-reflective glass 3 + 3mm plastic folder |
| Display screen glass |
Light transmittance 97% |
| Reflectivity is less than 3% |
| Explosion-proof, waterproof, fireproof |
| UV protection 99% |
| Display screen |
Industrial-grade LED, Original Samsung screen,brightness 2000cd / m2 |
| High brightness 1500-2000 cd/㎡ |
| Full HD 1920x1080 |
| Industrial power supply |
| automatically adjust the brightness |
| Electronic control system |
Power supplies, timers, remote control panel, photographic plate, speaker, battery, leakage protection switches, sockets, etc. |
| Cooling system |
Intelligent heating and air-cooling system |
| meet the environment of -20℃ — 55 ℃ |
| The LCD display is not blackening |
| The patented cooling system ensures that the LCD screen without blackening in direct sunlight |
| Product assembly and aging test |
IP65 waterproof test |
| High and low-temperature test |
| Simulated solar radiation test |
| Aging test |
| Packaging |
Wooden packaging, sea/air/express(transportation standards) |
49" high brightness digital signage Key Features
1, 49 inch high brightness LCD Module, 1500nits brightness, 1920x1080 resolution, 4000/1 contrast with LED backlight, Sunlight viewable
2, Patented LED backlight modular components + constant current source drive components
3, Patented cooling structure combination of the high-quality fan assembly
4, Quad cores CPU 8Gb memory, Latest Android OS network version support LAN control, WIFI control, USB, CF, SD slots, support VGA input, 3G(optional)
5, Automatic ambient light adjustment control (extended life and energy efficiency)
6, Built-in power adapter combination AC220V/DC
7, IP65 grade all waterproof and dustproof metal enclosure +6mm optical protective glass + air cooling/heating system
8, Highly fortified AR glass, protect the LCD screen from direct injury , played the role of anti-riot
9, Rackmount LCD display module + built-in anti-theft locks , patented a unique , easy to disassemble and maintain the site , a unique patent
10, A/C automatic fans Cooling/Heating system , thickness 14cm , Intelligent condition monitoring , real-time detection equipment vibration , temperature and humidity parameters such as power supply , timely warning , Working temperature -20℃ - 50℃
11, Frame(fit with single side screen) can be customized exactly same as client provided
Applications
| Business Organizations |
Supermarket, large-scale shopping malls , exclusive agency , chain shops , large-scale sales, star-rated hotels , restaurants , travel agencies , pharmacy . |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops , Non-profit Organizations , Telecommunications , post offices , hospital , schools |
| Public Places |
subway , airports , stations , gas stations, toll stations, bookstores, parks, exhibition halls , stadiums , museums , convention centers, ticket agencies , HR market , lottery centers . Real Estate Property , Apartments , villas , offices , commercial buildings , model rooms , property brokers . |
| Entertainments |
Movie theaters , fitness halls , country clubs , clubs, massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
