Highlight:
video display processor
, videowall processor

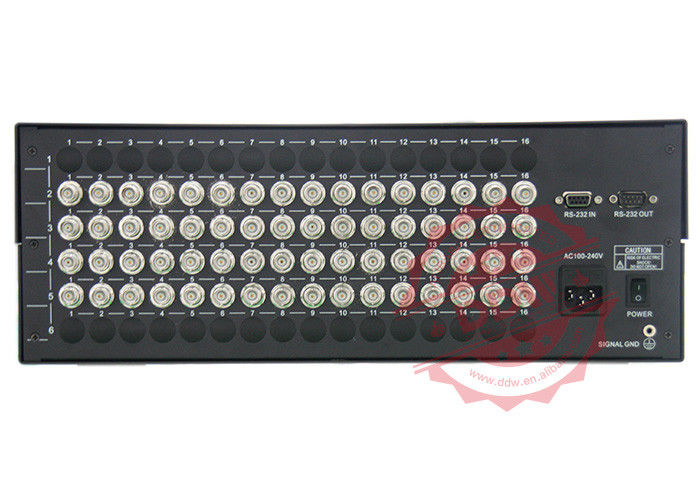

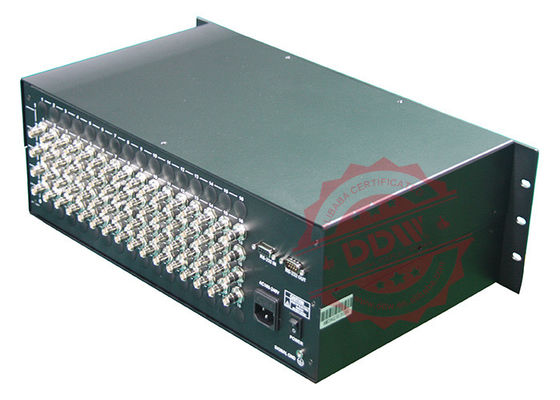

1080P higher resolution data path x4 planar video wall Scaler aluminum brushed frame
Features:
1. Ultra-narrow border design of the current width of only 3.5mm double edge
2. Industrial grade professional DID LCD screens, designed for industrial monitoring and multimedia information display
3. Various display modes such as Full screen display, Display separately on each screen, Free combining display, Picture roaming, Picture overlying, Picture stretch
4. Support 7x24 hours, 365 days of continuous power-on, high reliability and stability, product life up to 60,000 hours
5. All screens can display the same or different signal sources on a single screen
6. Combinations :2x2, 2x3, 3x3, 3x4, 4x4, 5x4, 5x5 or any combination customized
Performance:
1,Response time is less than 6ms, which is prompt
2,Embedded 3D digital signal noise reduction, support 1920x1080 resolution.
3,Signal interface --- RS232, , DVI, VGA, YPbPr, AV
4,RS232 control, easy operation for the system by control software
| Technical Specifications |
| Model series |
With CBD |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
/DVI/VGA/AV/YPbPr |
| Input resolution |
1024x768~1080p,commonly used resolutions |
| Output signal format |
DVI/VGA/AV/YPbPr/(DVI- converter) |
| Output resolution |
Up to 1920x1200/60HZ |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
4U/6U/10U/15U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365 x 7 x 24hrs |
| Technical specification of input/output connectors |
| VGA/RGB input |
Input: 15pin HD D-Sub, female |
| Sync mode: HV independent sync |
| Color Depth: 32bit/pixel |
| Resolution: 640 x 480/60HZ—1920 x1200/60HZ |
| Input impedance :75Ω |
| Video input |
Input connector: BNC |
| Detecting: full-format auto detecting |
| Input impedance :75Ω |
| VGA or DVI output |
Resolution:1024 x 768/60HZ-1920 x 1200/60HZ |
| Color depth: 32bit/pixel |
| Output impedance:75Ω |
| Physical properties of input/output connectors |
| Signals |
Connectors |
Type |
| Composite VIDEO input |
BNC |
female |
| VGA input |
15 pin HD D-Sub |
female |
| VGA output |
15 pin HD D-Sub |
female |
| DVI output |
24+5 or 24+1 standard |
female |
| AUX RS-232 |
9-pin D-Sub |
female |
| Main RS-232 |
9-pin D-Sub |
female |
