Highlight:
video display processor
, videowall processor

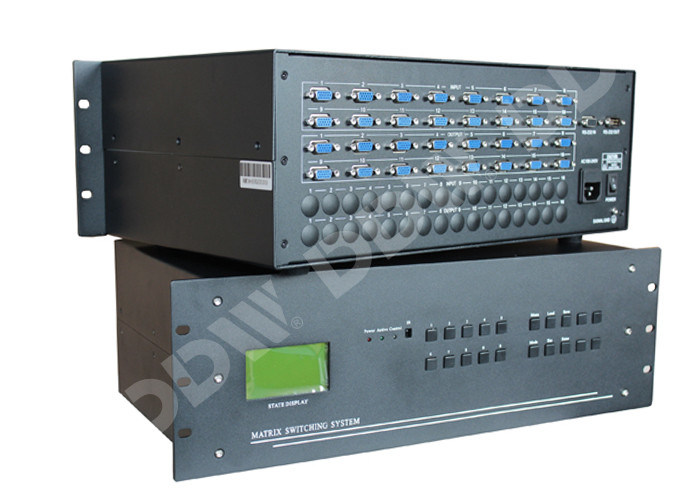

1080P higher resolution Vertical/Horizontal Display crestron video wall controller
video wall Scaler Introduction:
1, Multi-Input format switching support
VGA,DVI,CVBS, and SDI such as multi-input format support.
2, Looping Playback
It can be stored more than 100 sets of display mode.
Support looping playback and control switching via RS232 network or TCP/IP mode.
3, Operation System
Support Microsoft Windows , Linux , Sun , and Mac operation systems.
4, Power off memory function
When the system power outage then restoration again , it will return to the state before the power failure.
5,Plug & Play function
Pure external hardware design , free to install any software or drivers.
6, Input status identified
Operation software can be identified for each input and output interfaces , and can identify the input ports there a signal input.
7, PIP/POP Function
Support picture in picture (PIP) picture outside picture (POP) functions .
Single screen can be superimposed 4 contents on the screen. You can also size and position or cross the border at any other screen.
8,Partial Zooming Function
Support in a single screen zoom function. You can zoom view an image from any of the signal source in a particular area.
9, User friendly graphical user interface
Just use the mouse device , click on the video content which you want to play , then drag and drop the displayed size and position.
10, Multi-Input format switching support
VGA,DVI,CVBS, and SDI such as multi-input format support.
Lcd video wall controller can be widely used for:monitoring, directing, scheduling system, public security, fire, military, weather, rail, and aviation monitoring system, video conferencing, query systems.
| Technical Specifications |
| Model series |
With CBD |
No CBD |
| Function description |
4channel CBD,16channel AV, 12channel VGA/DVI input, 6U case supports 12 screens arrays, compatible with ultra-high resolution 4000/(8000)x2000 Dynamic background image |
16channel AV,16channel VGA/ DVI input,6U case supports 16screens arrays |
| Input signal(optional) |
/DVI/VGA/AV/YPbPr |
| Input resolution |
1024x768~1080p,commonly used resolutions |
| Output signal format |
DVI/VGA/AV/YPbPr/(DVI- converter) |
| Output resolution |
Up to 1920x1200/60HZ |
| System control software |
Special control software |
| Power Supply |
Redundant power supply 110-220VAC, 50/60Hz |
| Consumption |
12W/channel |
| Working temperature |
-20°C——60°C |
| Working Humidity |
5-95% |
| Case specification |
4U/6U/10U/15U standard rackmount chassis |
| Serial Control Interface |
RS-232,9-pin female, Type-D |
| Baud Rate |
115200 |
| Pin configuration |
2=TX,3=RX,5=GND |
| Ethernet control interface |
RJ-45 female, TCP/IP |
| Ethernet control speed |
Auto 10M or 100M,Full-duplex or half-duplex |
| Working time |
365 x 7 x 24hrs |
| Technical specification of input/output connectors |
| VGA/RGB input |
Input: 15pin HD D-Sub, female |
| Sync mode: HV independent sync |
| Color Depth: 32bit/pixel |
| Resolution: 640 x 480/60HZ—1920 x1200/60HZ |
| Input impedance :75Ω |
| Video input |
Input connector: BNC |
| Detecting: full-format auto detecting |
| Input impedance :75Ω |
| VGA or DVI output |
Resolution:1024 x 768/60HZ-1920 x 1200/60HZ |

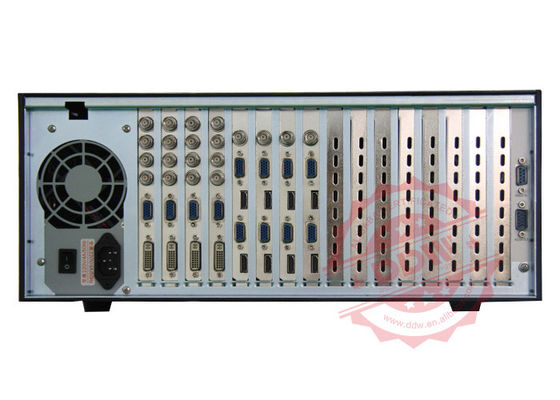

| Color depth: 32bit/pixel |
| Output impedance:75Ω |
| Physical properties of input/output connectors |
| Signals |
Connectors |
Type |
| Composite VIDEO input |
BNC |
female |
| VGA input |
15 pin HD D-Sub |
female |
| VGA output |
15 pin HD D-Sub |
female |
| DVI output |
24+5 or 24+1 standard |
female |
| AUX RS-232 |
9-pin D-Sub |
female |
| Main RS-232 |
9-pin D-Sub |
female |
